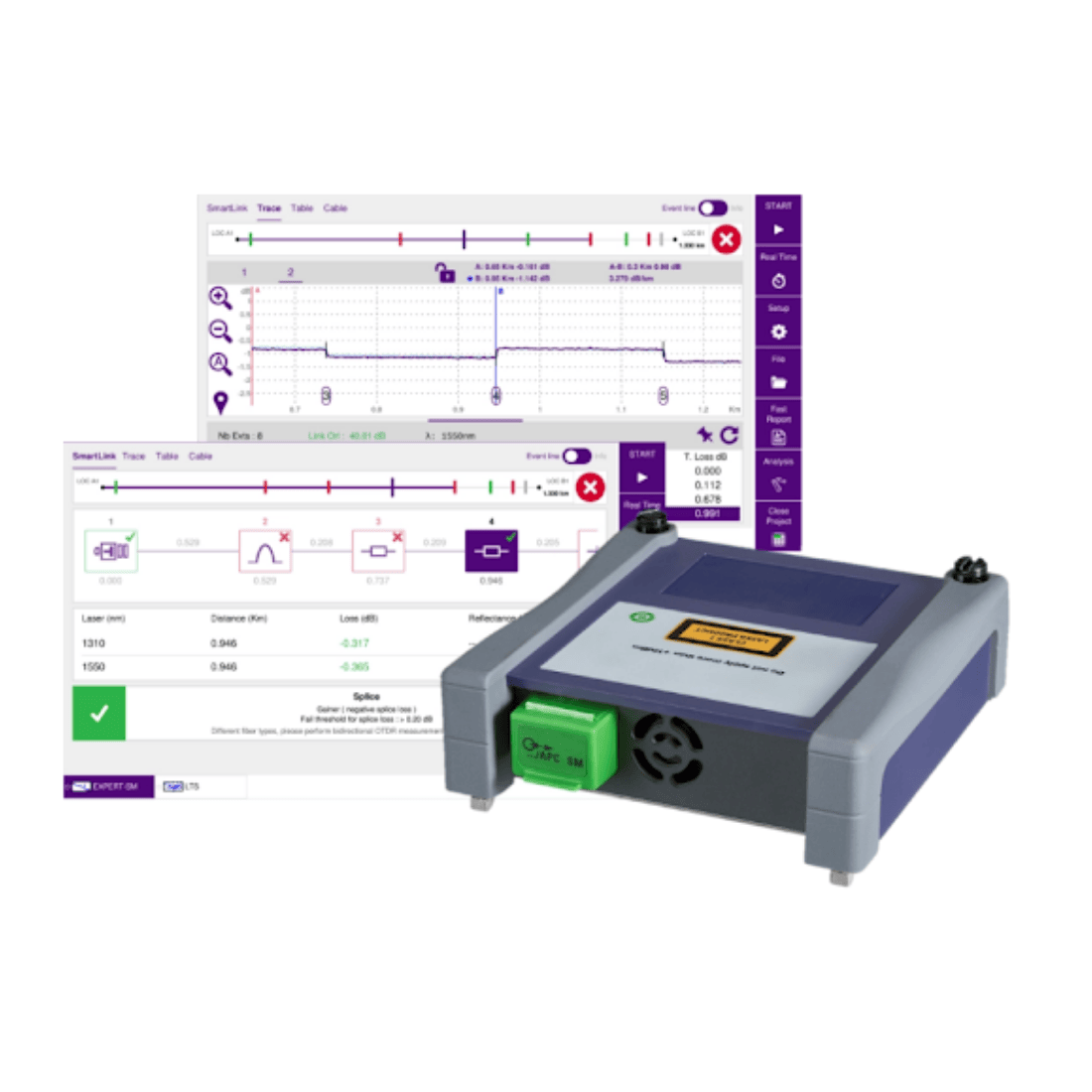

VIAVI 4100 Series OTDR Modules

The VIAVI 4100 Series OTDR Modules are high-performance, modular optical time-domain reflectometer solutions designed for seamless integration with VIAVI platforms such as T-BERD/MTS-2000, -4000 V2, -5800, OneAdvisor 800, and FTH-9000. These modules enable field technicians to efficiently install, commission, and troubleshoot a wide range of optical network architectures, including metro, long-haul, FTTx/PON, and access networks.


Key Features

  • Versatile Wavelength Options: Available in single, dual, or tri-wavelength configurations, including 1310 nm, 1550 nm, 1625 nm, and filtered 1650 nm for in-service testing.
  • High Dynamic Range: Offers up to 45 dB dynamic range and supports up to 256,000 acquisition points for detailed fiber characterization.
  • SmartLink Mapper (SLM): Provides an intuitive, icon-based view of the fiber link, simplifying OTDR trace analysis and reducing interpretation errors.
  • TrueBIDIR and Loopback Testing: Enables real-time bi-directional OTDR analysis, delivering accurate loss measurements without the need for post-processing.
  • Integrated Testing Capabilities: Combines OTDR measurement with optional integrated power meter and light source functionalities.
  • Automated Batch Testing: Supports automated testing of up to 192 fibers using MPO-based multi-fiber switches, streamlining high fiber count cable projects.
  • User-Friendly Interface: Features a responsive touchscreen interface with familiar touch gestures, facilitating ease of use and minimal learning time.


Applications

  • Metro and Long-Haul Network Deployment: Ideal for construction, commissioning, and troubleshooting of metro and long-haul optical networks.
  • FTTx/PON Testing: Optimized for testing through splitters up to 1x256, supporting various PON architectures including unbalanced, tapered, and indexed splitter configurations.
  • Enterprise and Data Center Certification: Facilitates Tier-2 certification and maintenance of enterprise and data center networks.
  • High Fiber Count Cable Management: Efficiently manages testing of high fiber count and ribbon cables with automated MPO switching.
  • FTTA/DAS Front Haul Testing: Supports characterization and troubleshooting of FTTA fiber cables, including macro cell towers, wireless backhauls, and distributed antenna systems.


Datasheet

For detailed technical specifications and additional information, please refer to the 4100 Series OTDR Modules Datasheet.VIAVI Solutions Inc.
